We Provide Services

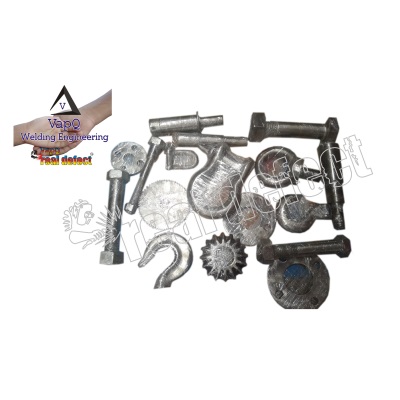

NDT UT, MT, PT, VT Forging & Casting Training and Examination Flawed SpecimensREAL DEFECT - We are very prominent in the flaw manufacturing industry. And we proud to be unique in industry as our technique very eminent professional possessing. All the flaws are fabricated to meet resemblance of natural flaws.

NDT UT, MT, PT, VT

+

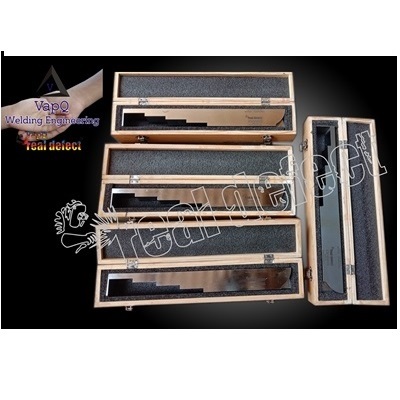

Providing you the best range of Paut-aws Type Block 304 Stainless Steel (inch Version), Paut- Asme Type Pipe Calibration Block Ndt Paut Calibration Block, Paut ISO 19675 Block, PAUT Mini Phased Array Calibration Standard Block 1018 Steel (Inch Version) and PAUT, ASTM E2491, Phased Array Assessment Block 304 Stainless Steel (Inch Version) with effective & timely delivery.

PAUT & TOFD Blocks

+

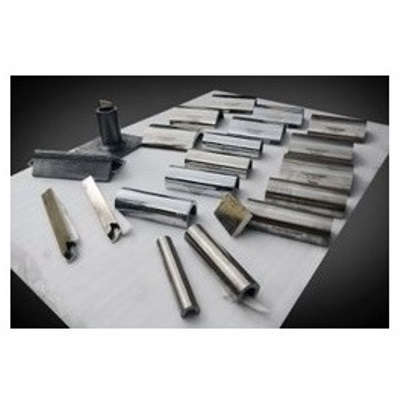

PCN & ISO 9712 Training and Examination Flawed Specimes. We are very prominent in the flaw manufacturing industry. We proud to be unique in industry as our technique very eminent professional possessing. The facilities we own with high & top end technology machines to meet our customer requirements & precise to meet the standards. All the flaws are processed to meet resemblance of natural flaws, this helps to explain the trainees by the trainers.

PCN & ISO9712

+

Our Services

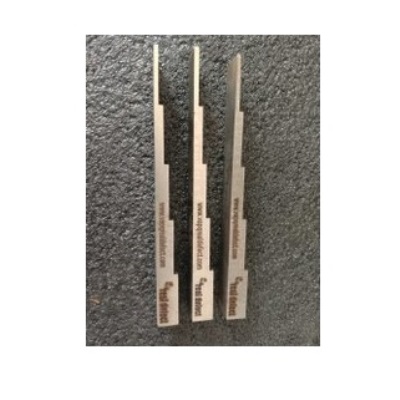

Magna-Thin Step Block 1018 Steel (inch Version) Geometry: Step thicknesses of .020, .040, .060, .080, and .100".Step face measures .750" x .750". Special 5-step block for thickness and linearity calibration of thin materials.

Magna Thin Step Block 1018 Steel inch Version

+

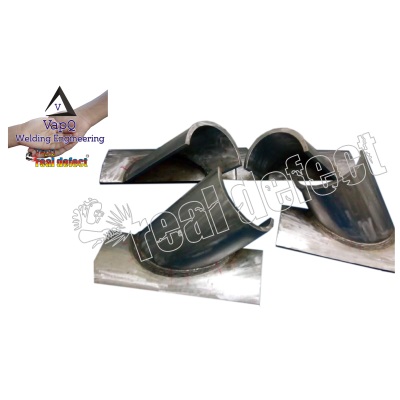

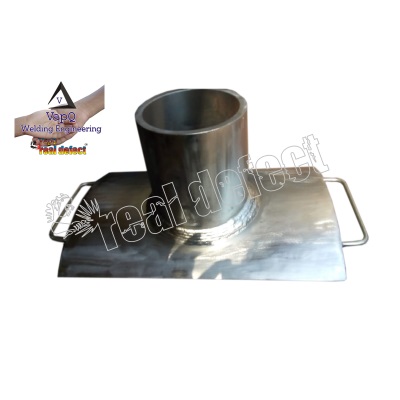

Tubular Nodes 15mm 40 Digree (35, 45, 60, 70 Digree) UT Flawed Specimens ( As per BINDT PCN Classification Specimens ) Geometry: Tubular Nodes Dihedral Angle 40??? Main Pipe Segment 20” Dia. 20 to 25 mm WT & Branch 8” Dia. And 12 mm WT Material: Carbon Steel.

Tubular Nodes 15mm 40 Digree UT

+

Paut-aws Type Block 304 Stainless Steel (inch Version) Geometry: The three radii (0.500, 1.000, 2.000") allow for exit point verification, velocity, and sound path calculations. Block contains five holes at 0.060" diameter drilled through the 1.000" width, located at .100, .200, .400, .600, .800, 1.200, 1.400, 1.600, 1.800, and 1.900" from the respective scanning surface.Dimensions: 18.0" x 2.0" x 1.0".

Paut-aws Type Block 304 Stainless Steel (inch Version)

+

Paut- Asme Type Pipe Calibration Block Ndt Paut Calibration Block. Ready to request a quote for some blocks? Here's what we need... What is the pipe material? What is the pipe NPS / OD size? What is the pipe schedule / wall thickness? Is NDE TECH supplying the material or will it be customer supplied? Are there any changes or modifications requested to the our block design? Call our office or drop us an e-mail with the above information.

Paut- Asme Type Pipe Calibration Block Ndt Paut Calibration Block

+

Paut ISO 19675 Block. PAUT-Mini Phased Array Calibration Standard Block 1018 Steel (Inch Version) Geometry:The block includes a total of four holes at 3/64" diameter drilled through the 1.000" width, located at .200, .400, .600, .700, .800, .900, 1.100, and 1.300" from the respective scanning surface. Dimensions: 1.500" tall x 1.000" wide x 10.00" long

Paut ISO 19675 Block

+

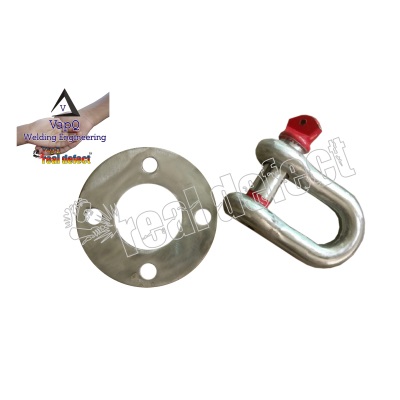

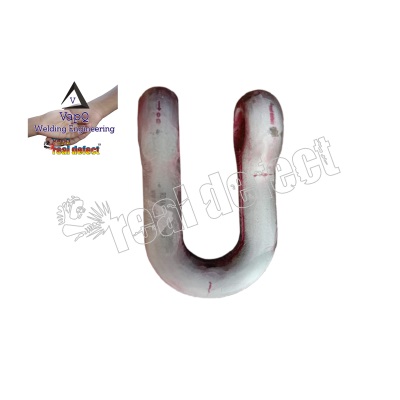

Forged Shackle & Pin Magnetic Particle Exam Flawed Specimens. Dimensions: 107.95 mm w/19.05 mm Pin Flaws: 3, Randomly Placed Standard Tolerance: +/- (4mm) Documentation: NDT Verification Reports And CAD Drawings.Material: Carbon Steel.

Forged Shackle & Pin Magnetic Particle

+

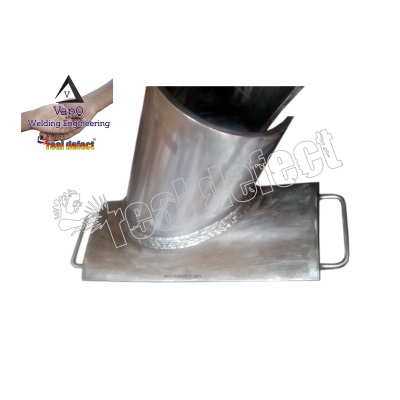

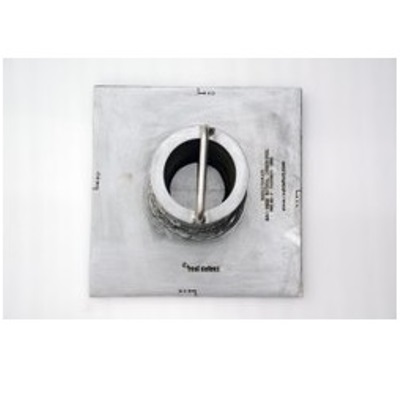

Nozzle to Plate Weld Ultrasonic Practical Exam flawed specimens. Geometry: 2" Sch160 pipe to 0.375 x 8" x 8" Plate Flaws: 3, randomly placed Standard Tolerance: +/-0.150" (4mm) Documentation: NDT Verification Reports,C of C, CAD Drawings and Test Sheets. Material: Carbon Steel.

Nozzle To Plate Weld Ultrasonic Practical Exam Flawed Specimens

+

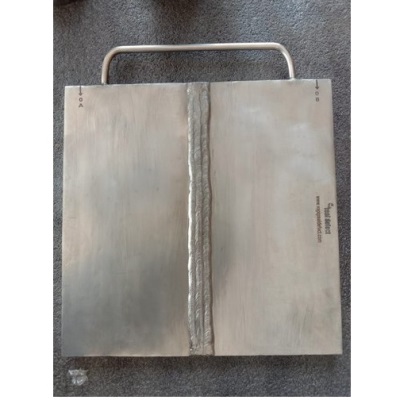

15mm SV Plate to Plate RT Flawed Specimens. Geometry: Plate to Plate Single V Butt Weld 300 mm Long and 150 mm Wide on Either Side of The Weld thickness Range >10 mm to 15mm.

15mm SV Plate to Plate RT Flawed Specimens

+

4” 15mm DV Pipe to Pipe RT Flawed Specimens. Geometry: Pipe to Pipe Butt Weld Joint with Pipe 4” Dia. And 150 mm Wide on Either Side of The Weld thickness 15 mm.

4 Inch 15mm SV But Joint Pipe To Pipe RT Flawed Specimens

+

5 Step Calibration Block Aluminum-7075 5-Step Calibration Block for thickness and linearity calibration Inch Version: 0.750" square with thicknesses of steps at .100", .200", .300", .400" and .500". Step Face: 3/4" x 3/4" Spec: ASTM E797

5 Step Calibration Block Titanium

+

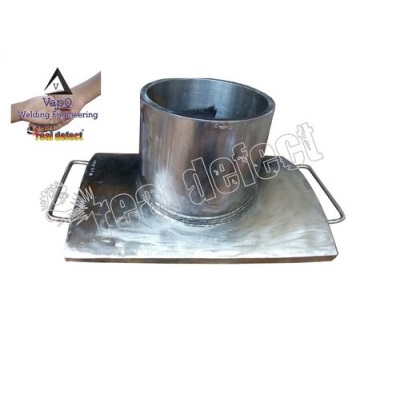

Tubular Nodes 15mm 35 Digree UT Flawed Specimens (As per BINDT PCN Classification Specimens). Geometry:Tubular Nodes Dihedral Angle 35 Main Pipe Segment 20” Dia. 20 to 25 mm WT & Branch 8” Dia. And 12 mm WT Material: Carbon Steel

Tubular Nodes 15mm 35 Digree UT Flawed Specimens

+

Forged Shackle & Pin Magnetic Particle Exam Flawed Specimens. Dimensions: 107.95 mm w/19.05 mm Pin Flaws: 3, Randomly Placed Standard Tolerance: +/- (4mm) Documentation: NDT Verification Reports And CAD Drawings.Material: Carbon Steel.

Forged Shackle & Pin Magnetic Particle

+

Corrosion/Erosion and Pitting Specimens Plate Plate Dimensions: Length 300mm X Width 200mm Thickness – 15mm. Stainless Steel Corrosion/Erosion Defectsw were placed randomly on the Specimens. Some of specimens will have naturally obtained Corrosions/Erosions recorded. Depth of the Corrosion indications will be based on the deepest spot within the field of Corrosion. The host side of the Plate will be covered with a “Removable” cover plate.

Corrosion, Erosion, Plates Thickness 15MM

+

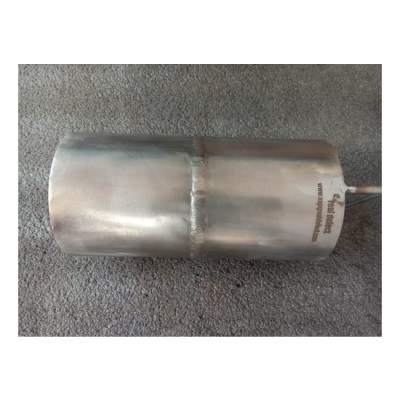

PAUT And TOFD Pipe Butt Weld Joint 10" Dia Flawed Specimen. Geometry:Pipe to Pipe Butt Weld Joint with Pipe 10" Dia. And 200 mm Wide on Either Side of The Weld thickness range >20mm to 30mm Material: Carbon Steel

PAUT And TOFD Pipe Butt Weld Joint 10"

+

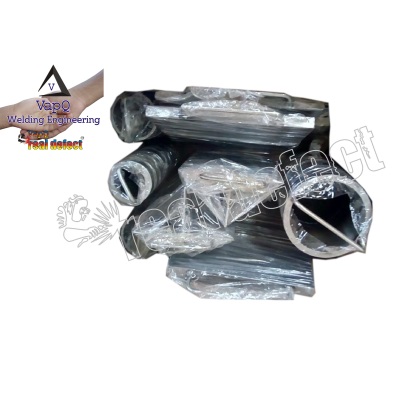

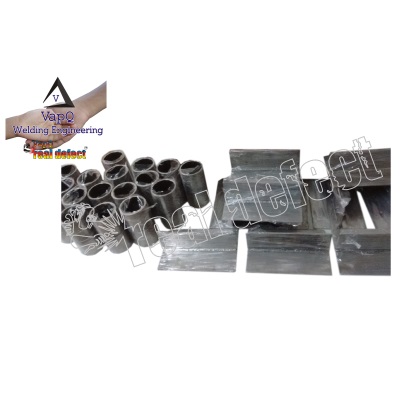

Real Defect Standard NDT PT Flawed Specimens Kit.(Radiographic Testing) For NDT RT Demonstration. 8 Plates, 1 Tee, 1 Pipe 25 Randomly Placed Discontinuities Flaws.

Standard NDT RT Flawed Kit

+

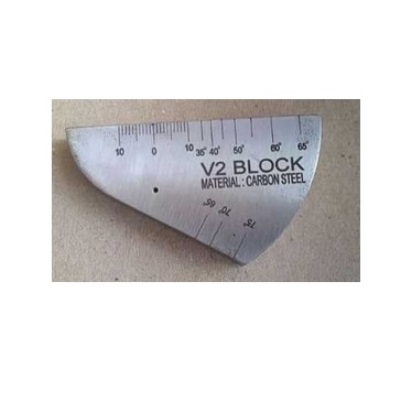

V2 Calibration Block. Material: Carbon Steel, Brand: REAL DEFECT, Packaging Type: Box, Thickness: 1 to 50mm, Country of Origin: Made in India, Dimensions: 75mm x 43mm x 25mm

V2 Calibration Block

+

AWS/CWI Visual Kit (As Per AWS D1.1) Geometry: Kit contains 10 specimens: (4) Plates @ .25"T (4) Tee @ .25"T (2) Lap Joints Material: Carbon Steel Documentation: NDT Verification Reports and Test Sheets.

AWS/CWI Visual Kit (As Per AWS D1.1)

+

Standard NDT VT Flawed Specimens Kit. (Visual Testing) For NDT VT Demonstration. 6 Plates, 2 Tee, 2 Pipe 25 Randomly Placed Discontinuities Flaws.

Standard NDT VT Flawed Specimens Kit (Visual Testing Kit)

+

8" Pipe to Nozzle 19mm UT Flawed Specimens (Set Through Full Penetration) Dimensions: Pipe To Flange Nozzle Joint With Weld Length 200 To 250 mm And Thickness Range 15 to 20 mm With(Set Through) Full Penetration Joint (Carbon Steel)

8" Pipe To Nozzle 15MM UT Flawed Specimens (Set Through Full Penetration)

+

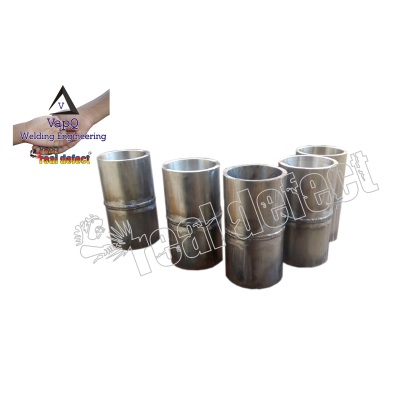

2 Inch NDT UT Flawed Specimens Pipe Joint

2 Inch NDT UT Flawed Specimens Pipe Joint

+

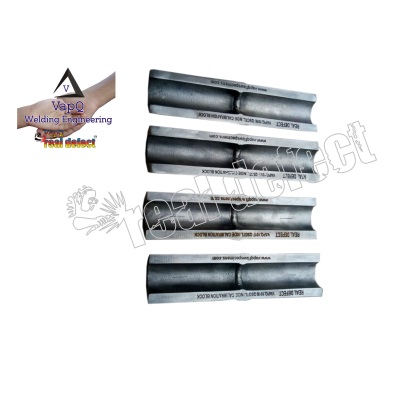

PAUT-Phased calibration block 2"pipe lanth 300mm, thik 9.5mm, masmach,noches lanth 5mm,with0.2mm, depth 6.5mm,all different typs noches.materil Inconel 8811.

Paut -Phased Type Pipe Calibration Block 2"Pipe

+

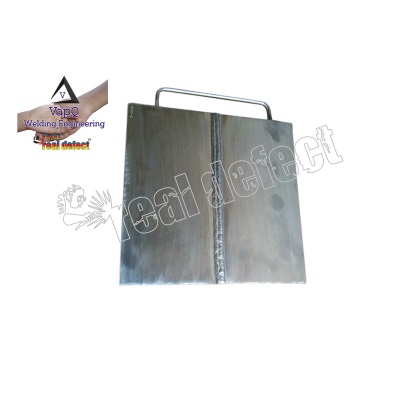

Butt Joint 6mm Plate to Plate VT Flawed Specimens. PAUT-Phased calibration block 2"pipe lanth 300mm, thik 9.5mm, masmach,noches lanth 5mm,with0.2mm, depth 6.5mm,all different typs noches.materil Inconel 8811.

Butt Joint 6mm Plate to Plate VT Flawed Specimens

+

Foged Metal Plate Magnetic particle Exam Flawed Specimens. Dimensions: 6.35 mm x 101.6 mm Plate Flaws: 3, Randomly Placed Standard Tolerance: +/- (4mm) Documentation: NDT Verification Reports And CAD Drawings and Test Sheets. Material: Carbon Steel.

Forged Metal Plate Magnetic Particle Exam Flawed Specimens

+

8"Pipe to Nozzle 19mm UT Flawed Specimens (Set On Full Penetration) Dimensions: Pipe to Flange Nozzle Joint With Weld Length 200 to 250 mm And Thickness Range 15 to 20 mm With(Set On) Full Penetration Joint (Carbon Steel)

8"Pipe To Nozzle 15MM UT Flawed Specimens

+
